Guhring

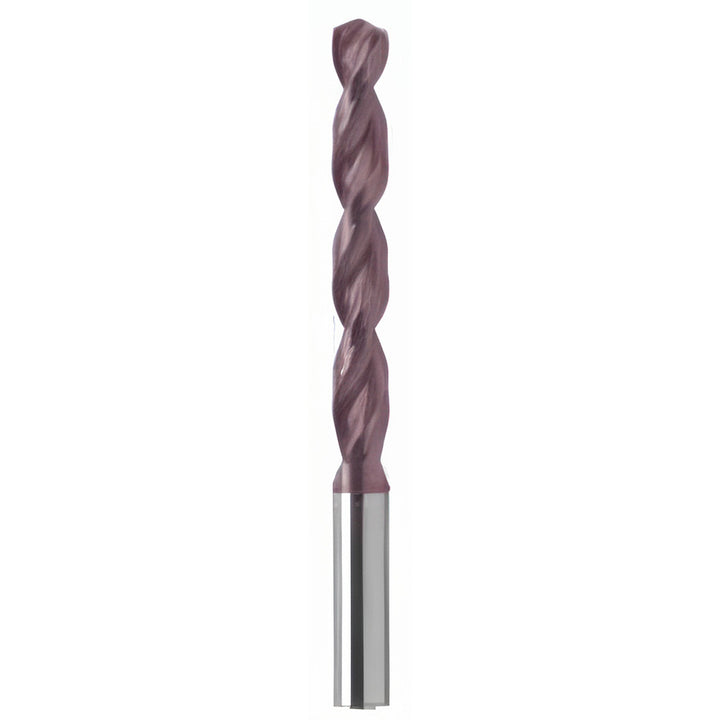

33/64" Powdered Metal Drill Bit, FIREX, 130° point - Guhring 9005300131000
MFR# 9005300131000Series 530
$110.84List $142.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size33/64
Flutes2
Description
The Guhring 9005300131000 is a 33/64" Powdered Metal drill bit with a FIREX finish, 130° point. Suited for cast iron, steel. Series 530.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit finish coatingFIREX
Drill bit materialPowdered Metal
Drill bit size in33/64
Drill bit size range0.5000 - 0.6500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length3.9800
Flute typeParabolic
Maximum drilling depth3.2030
Number of flutes2
Overall length5.9400
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)13.10
Shank length (mm)50.00
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeFast
StandardsDIN 338
Tool performanceHigh Performance
Web thinningWeb-Thinned
