Guhring

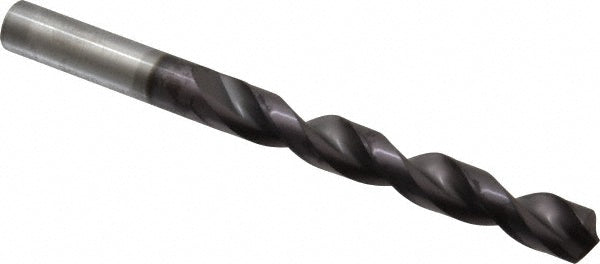

0.5315" Powdered Metal Drill Bit, FIREX, 130° point - Guhring 9005300135000
MFR# 9005300135000Series 530
$108.89List $139.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9005300135000 is a 0.5315" Powdered Metal drill bit with a FIREX finish, 130° point. Suited for cast iron, steel. 4-1/4 flute length, 6-5/16 overall length. Series 530.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.027 to 0.000 mm
Drill bit finish coatingFIREX
Drill bit materialPowdered Metal
Drill bit size0.5315
Drill bit size range0.5000 - 0.6500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in4-1/4
Flute typeParabolic
Material gradePM-ASP-60
Maximum drilling depth3.4550
Number of flutes2
Overall length in6-5/16
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter0.5315
Shank length (mm)52.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
