Guhring

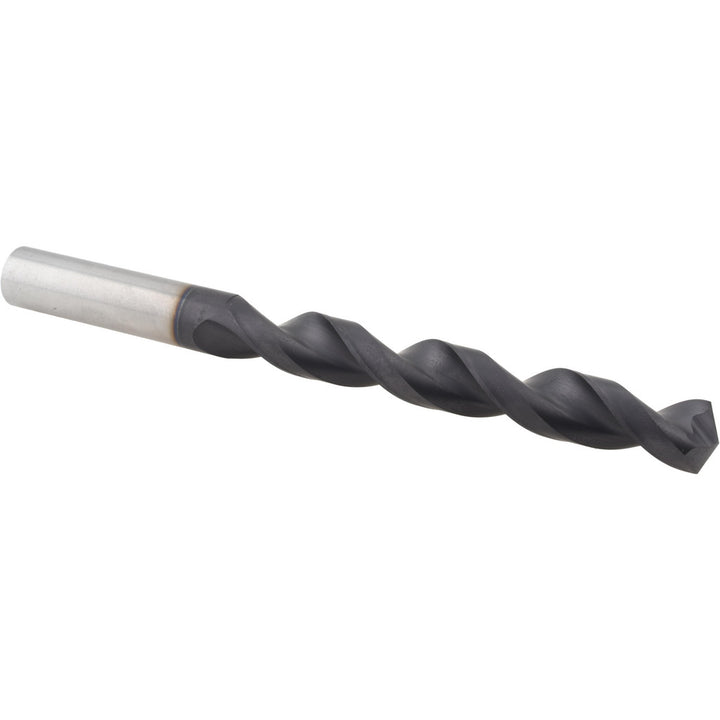

9/16" Powdered Metal Drill Bit, Multi-layer, 130° point - Guhring 9005300142900
MFR# 9005300142900Series 530
$133.17List $170.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/16
Flutes2
CoatingMulti-layer
Description
The Guhring 9005300142900 is a 9/16" Powdered Metal drill bit with a Multi-layer finish, 130° point. Suited for steel, cast iron, stainless steel. Series 530.
Specifications
Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHigh Performance
Drill bit materialPowdered Metal
Drill bit size in9/16
Drill bit size range0.5000 - 0.6500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length4.4900
Flute typeParabolic
Maximum drilling depth3.6440
Number of flutes2
Overall length6.6500
Point typeCone Relief
Primary workpiece materialSteel; Cast Iron; Stainless Steel
Shank diameter (mm)14.29
Shank length (mm)55
Shank typeStraight
Specification designationDIN
Spiral typeFast
StandardsDIN 338
Tool performanceHigh Performance
Web thinningWeb-Thinned
