Guhring

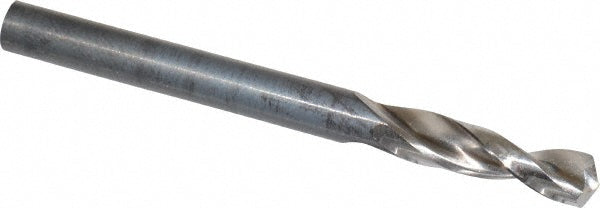

0.2087" High Speed Steel Drill Bit, 130° point - Guhring 9005490053000
MFR# 9005490053000Series 549
$10.96List $14.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9005490053000 is a 0.2087" High Speed Steel drill bit, 130° point. Suited for aluminum. 2-3/64 flute length, 3-25/64 overall length. Series 549.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size0.2087
Drill bit size range0.2000 - 0.2500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in2-3/64
Flute typeParabolic
Maximum drilling depth1.7340
Number of flutes2
Overall length in3-25/64
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.2087
Shank length (mm)34.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
