Guhring

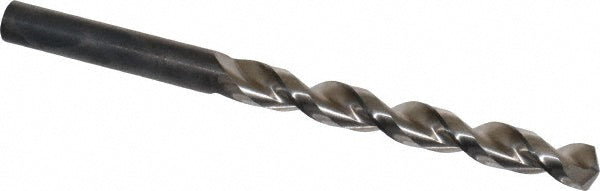

Letter P High Speed Steel Drill Bit, 130° point - Guhring 9005490082000
MFR# 9005490082000Series 549
$25.72List $32.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9005490082000 is a Letter P High Speed Steel drill bit, 130° point. Suited for aluminum. 2-61/64 flute length, 4-39/64 overall length. Series 549.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.022 to 0.000 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size0.3228
Drill bit size letterP
Drill bit size range0.3000 - 0.3500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in2-61/64
Flute typeParabolic
Maximum drilling depth2.4690
Number of flutes2
Overall length in4-39/64
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.3228
Shank length (mm)42.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
