Guhring

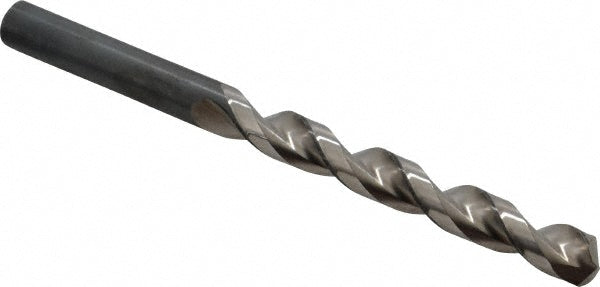

Letter W High Speed Steel Drill Bit, 130° point - Guhring 9005490098000
MFR# 9005490098000Series 549
$41.54List $53.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9005490098000 is a Letter W High Speed Steel drill bit, 130° point. Suited for aluminum. 3-27/64 flute length, 5-1/4 overall length. Series 549.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.022 to 0.000 mm
Drill bit finish coatingBright/Uncoated
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size0.3858
Drill bit size letterW
Drill bit size range0.3500 - 0.4000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in3-27/64
Flute typeParabolic
Maximum drilling depth2.8460
Number of flutes2
Overall length in5-1/4
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.3858
Shank length (mm)46.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
