Guhring

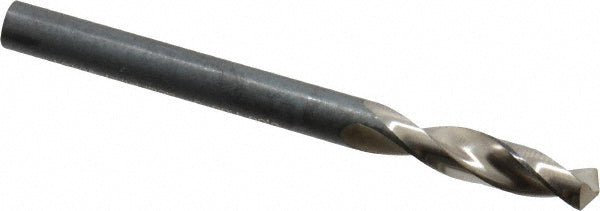

#8 High Speed Steel Stub Drill Bit, 130° point - Guhring 9005520050600
MFR# 9005520050600Series 552
$11.40List $14.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9005520050600 is a #8 High Speed Steel Stub drill bit, 130° point. Suited for aluminum. 1-1/32 flute length, 2-7/16 overall length. Series 552.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size0.1990
Drill bit size range0.1500 to 0.2000
Drill bit size wire#8
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-1/32
Flute typeParabolic
Maximum drilling depth0.7250
Number of flutes2
Overall length in2-7/16
Point typeStandard
Primary workpiece materialAluminum
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialHigh Speed Steel
Web configurationParallel
Web thinningWeb-Thinned
