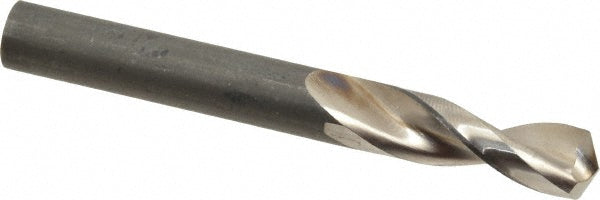

13/32" HSS Stub Drill Bit, 130° point - Guhring 9005520103200

Guhring

13/32" HSS Stub Drill Bit, 130° point - Guhring 9005520103200

MFR# 9005520103200Series 552

$39.36List $50.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/32
Flutes2

Description

The Guhring 9005520103200 is a 13/32" HSS Stub drill bit, 130° point. Suited for steel, aluminum & non-ferrous. 1-11/16 flute length, 3-1/2 overall length. Series 552.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit gradeHigh Performance
Drill bit size in13/32
Drill bit size range0.4000 to 0.4500
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length in1-11/16
Flute typeParabolic
Maximum drilling depth1.0830
Number of flutes2
Overall length in3-1/2
Point typeCone Relief
Primary workpiece materialSteel; Aluminum & Non-Ferrous
Shank diameter0.4063
Shank length1.8110
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeFast
StandardsDIN 1897
Tool materialHSS
Web configurationParallel
Web thinningWeb-Thinned
