Guhring

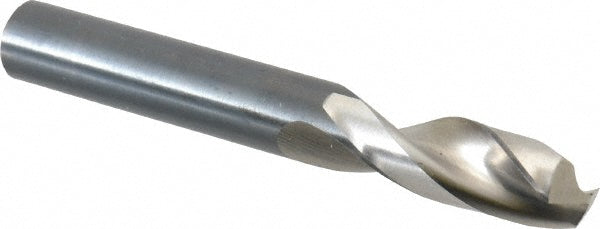

0.4528" High Speed Steel Stub Drill Bit, 130° point - Guhring 9005520115000
MFR# 9005520115000Series 552
$47.86List $61.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9005520115000 is a 0.4528" High Speed Steel Stub drill bit, 130° point. Suited for aluminum. Series 552.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit gradeHigh Performance
Drill bit size0.4528
Drill bit size range0.4500 to 0.5000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length1.8504
Flute typeParabolic
Maximum drilling depth1.1710
Number of flutes2
Overall length3.7400
Point typeStandard
Primary workpiece materialAluminum
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialHigh Speed Steel
Web configurationParallel
Web thinningWeb-Thinned
