Guhring

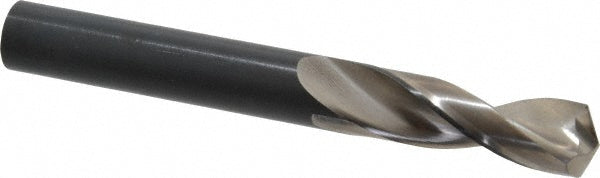

15/32" High Speed Steel Stub Drill Bit, 130° point - Guhring 9005520119100
MFR# 9005520119100Series 552
$47.86List $61.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/32
Flutes2
Description
The Guhring 9005520119100 is a 15/32" High Speed Steel Stub drill bit, 130° point. Suited for aluminum. 2 flute length, 4-1/32 overall length. Series 552.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit gradeHigh Performance
Drill bit size in15/32
Drill bit size range0.4500 to 0.5000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length in2
Flute typeParabolic
Maximum drilling depth1.3050
Number of flutes2
Overall length in4-1/32
Point typeStandard
Primary workpiece materialAluminum
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialHigh Speed Steel
Web configurationParallel
Web thinningWeb-Thinned
