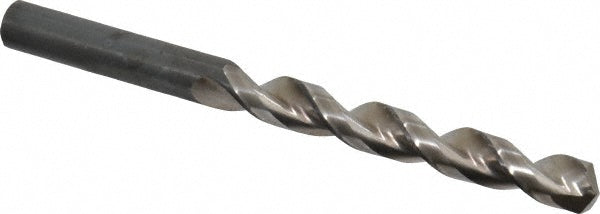

13/32" Cobalt Drill Bit, Straw, 130° point - Guhring 9006220103200

Guhring

13/32" Cobalt Drill Bit, Straw, 130° point - Guhring 9006220103200

MFR# 9006220103200Series 622

$63.61List $81.58 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/32
Flutes2
CoatingStraw

Description

The Guhring 9006220103200 is a 13/32" Cobalt drill bit with a Straw finish, 130° point. Suited for steel, cast iron, aluminum & non-ferrous. 5-1/4 overall length. Series 622.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.027 to 0.000 mm
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in13/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length3.4380
Flute typeParabolic
Maximum drilling depth2.8160
Number of flutes2
Overall length in5-1/4
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter in13/32
Shank length (mm)46
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
