Guhring

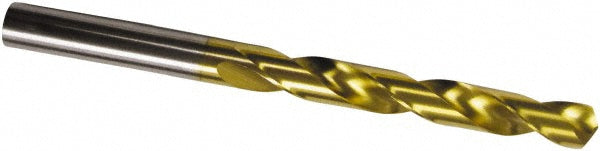

0.0445" High Speed Steel Drill Bit, TiN, 118° point - Guhring 9006510011300
MFR# 9006510011300Series 651
$7.80List $10.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006510011300 is a 0.0445" High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. Series 651.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0445
Drill bit size range0.0000 - 0.0500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)14.00
Flute typeSpiral
Maximum drilling depth0.4850
Number of flutes2
Overall length (mm)36.00
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter0.0445
Shank length (mm)22.00
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
