Guhring
#22 High Speed Steel Drill Bit, TiN, 118° point - Guhring 9006510039900
MFR# 9006510039900
$7.40List $9.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description

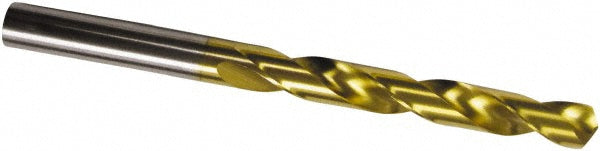

The Guhring 9006510039900 is a #22 High Speed Steel drill bit with a TiN finish, 118° point.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.1571
Drill bit size range0.1500 - 0.2000
Drill bit size wire#22
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)43.00
Flute typeSpiral
Number of flutes2
Overall length (mm)75.00
Point typeCone Relief
Shank diameter0.1571
Specification designationDIN
Spiral typeRegular
Web thinningWeb-Thinned
