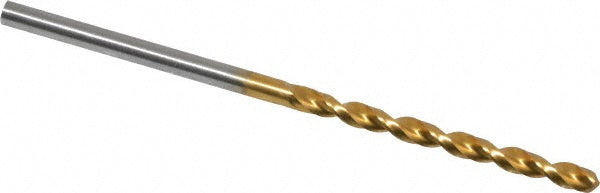

3/32" HSS Drill Bit, TiN, 130° point - Guhring 9006520023800

Guhring

3/32" HSS Drill Bit, TiN, 130° point - Guhring 9006520023800

MFR# 9006520023800Series 652

$13.67List $17.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/32
Flutes2
CoatingTiN

Description

The Guhring 9006520023800 is a 3/32" HSS drill bit with a TiN finish, 130° point. Suited for steel, cast iron, aluminum & non-ferrous. 2-1/4 overall length. Series 652.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.014 to 0.000 mm
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size in3/32
Drill bit size range0.0500 - 0.1000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length1.1811
Flute typeParabolic
Maximum drilling depth1.0410
Number of flutes2
Overall length in2-1/4
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter in3/32
Shank length (mm)27
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
