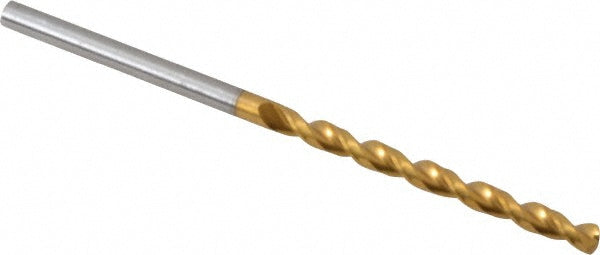

0.1004" High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520025500
MFR# 9006520025500Series 652
$18.72List $24.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006520025500 is a 0.1004" High Speed Steel drill bit with a TiN finish, 130° point. Suited for aluminum. Series 652.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.014 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialHigh Speed Steel
Drill bit size0.1004
Drill bit size range0.1000 - 0.1500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length (mm)30.00
Flute typeParabolic
Maximum drilling depth1.0300
Number of flutes2
Overall length (mm)57.00
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.1004
Shank length (mm)27.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
