#2 HSS Drill Bit, TiN, 130° point - Guhring 9006520056100

Guhring

#2 HSS Drill Bit, TiN, 130° point - Guhring 9006520056100

MFR# 9006520056100Series 652

$30.84List $39.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

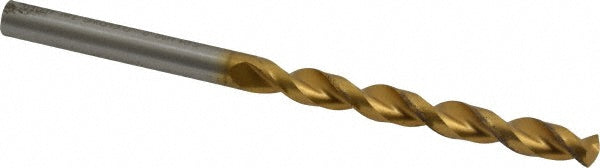

The Guhring 9006520056100 is a #2 HSS drill bit with a TiN finish, 130° point. Suited for steel, cast iron, aluminum & non-ferrous. 2-1/4 flute length, 3-21/32 overall length. Series 652.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.2210
Drill bit size range0.2000 - 0.2500
Drill bit size wire#2
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in2-1/4
Flute typeParabolic
Maximum drilling depth1.9130
Number of flutes2
Overall length in3-21/32
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.2209
Shank length (mm)36
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
