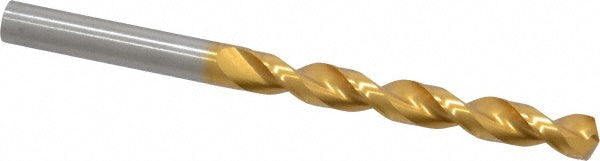

0.3543" High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520090000

Guhring

0.3543" High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520090000

MFR# 9006520090000Series 652

$40.99List $52.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Guhring 9006520090000 is a 0.3543" High Speed Steel drill bit with a TiN finish, 130° point. Suited for aluminum. 3-3/16 flute length, 4-29/32 overall length. Series 652.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.022 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size0.3543
Drill bit size range0.3500 - 0.4000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in3-3/16
Flute typeParabolic
Maximum drilling depth2.6600
Number of flutes2
Overall length in4-29/32
Point typeStandard
Primary workpiece materialAluminum
Shank diameter0.3543
Shank length (mm)44.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
