Guhring

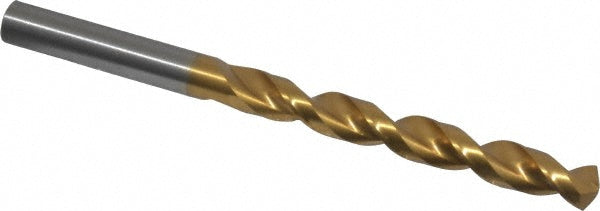

23/64" High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520091300
MFR# 9006520091300Series 652
$57.29List $73.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size23/64
Flutes2
CoatingTiN
Description
The Guhring 9006520091300 is a 23/64" High Speed Steel drill bit with a TiN finish, 130° point. Suited for aluminum. 4-29/32 overall length. Series 652.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.022 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size in23/64
Drill bit size range0.3500 - 0.4000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length (mm)81.00
Flute typeParabolic
Maximum drilling depth2.6500
Number of flutes2
Overall length in4-29/32
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in23/64
Shank length (mm)44.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
