Guhring
3/8" High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520095200
MFR# 9006520095200Series 652
$46.47List $59.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
CoatingTiN
Description

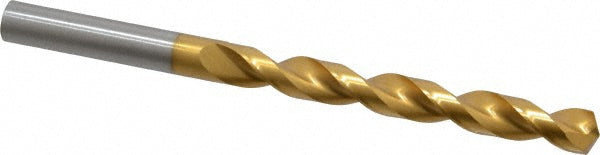

The Guhring 9006520095200 is a 3/8" High Speed Steel drill bit with a TiN finish, 130° point. Suited for aluminum. 3-7/16 flute length, 5-1/4 overall length. Series 652.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.022 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size in3/8
Drill bit size range0.3500 - 0.4000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in3-7/16
Flute typeParabolic
Maximum drilling depth2.8630
Number of flutes2
Overall length in5-1/4
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in3/8
Shank length (mm)46.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
