Guhring

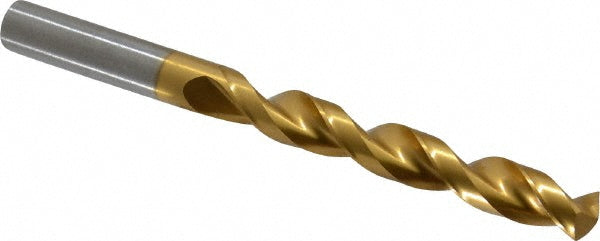

1/2" High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520127000
MFR# 9006520127000Series 652
$95.60List $122.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
Flutes2
CoatingTiN
Description
The Guhring 9006520127000 is a 1/2" High Speed Steel drill bit with a TiN finish, 130° point. Suited for aluminum. 3-31/32 flute length, 5-15/16 overall length. Series 652.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.027 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in3-31/32
Flute typeParabolic
Maximum drilling depth3.2260
Number of flutes2
Overall length in5-15/16
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in1/2
Shank length (mm)50.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
