Guhring

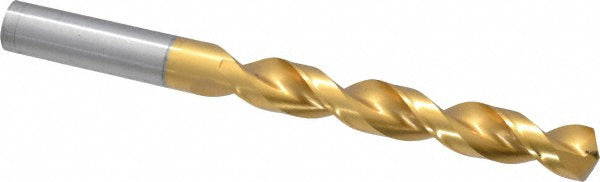

33/64" High Speed Steel Drill Bit, TiN, 130° point - Guhring 9006520131000
MFR# 9006520131000Series 652
$117.28List $150.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size33/64
Flutes2
CoatingTiN
Description
The Guhring 9006520131000 is a 33/64" High Speed Steel drill bit with a TiN finish, 130° point. Suited for aluminum. 5-15/16 overall length. Series 652.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.027 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size in33/64
Drill bit size range0.5000 - 0.6500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length (mm)101.00
Flute typeParabolic
Maximum drilling depth3.2030
Number of flutes2
Overall length in5-15/16
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in33/64
Shank length (mm)50.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
