Guhring

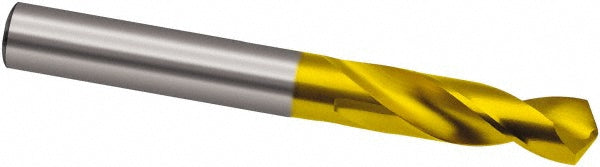

0.1280" High Speed Steel Drill Bit, TiN, 118° point - Guhring 9006530032500
MFR# 9006530032500Series 653
$12.36List $15.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006530032500 is a 0.1280" High Speed Steel drill bit with a TiN finish, 118° point. Series 653.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit size0.1280
Drill bit size range0.1000 to 0.1500
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)18.00
Flute typeSpiral
Material gradeM2
Number of flutes2
Overall length1.9291
Point typeCone Relief
Shank diameter0.1280
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
Tool materialHigh Speed Steel
Web thinningWeb-Thinned
