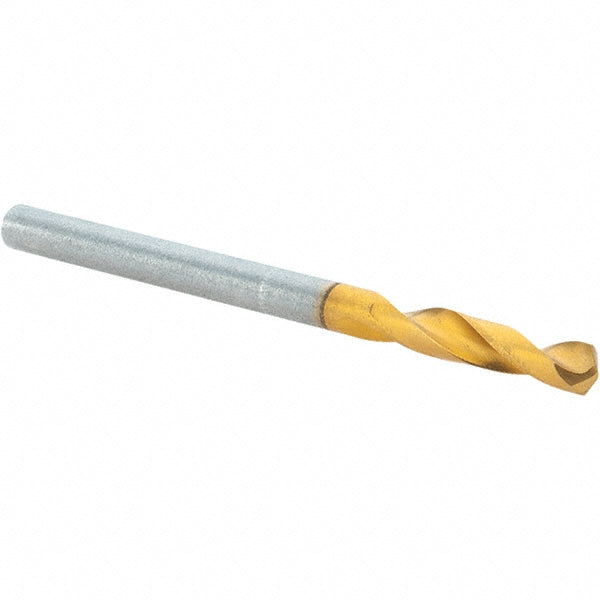

#29 High Speed Steel Stub Drill Bit, Coated, 118° point - Guhring 9006530034500
MFR# 9006530034500Series 653
$12.36List $15.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9006530034500 is a #29 High Speed Steel Stub drill bit with a Coated finish, 118° point. Suited for cast iron, steel. Series 653.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeGeneral Purpose
Drill bit size0.1360
Drill bit size range0.1000 to 0.1500
Drill bit size wire#29
Drill length typeStub
Drill point angle118
Drill tip finish coatingTiN
Flute by diameter ratio3xD
Flute length0.7874
Flute typeSpiral
Material gradeM2
Maximum drilling depth0.7874
Number of flutes2
Overall length2.0472
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)3.45
Shank length1.2598
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialHigh Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
