Guhring

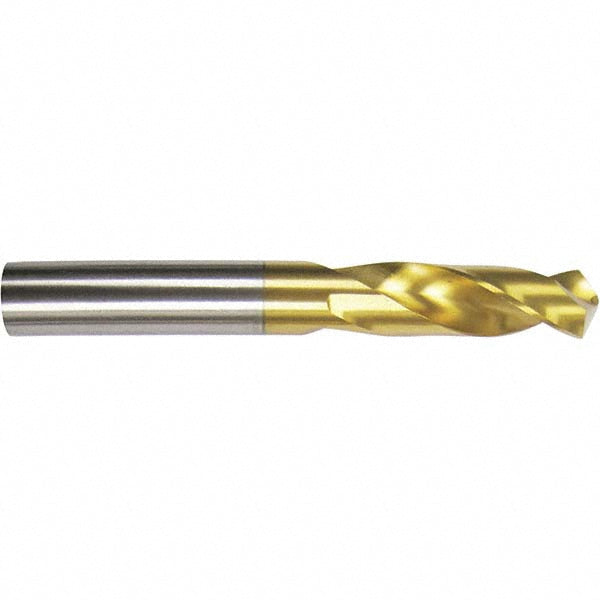

0.1654" High-Speed Steel Stub Drill Bit, 118° point - Guhring 9006530042000
MFR# 9006530042000Series 653
$7.60List $9.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9006530042000 is a 0.1654" High-Speed Steel Stub drill bit, 118° point. Suited for cast iron, steel. Series 653.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeGeneral Purpose
Drill bit size0.1654
Drill bit size range0.1500 to 0.2000
Drill length typeStub
Drill point angle118
Drill tip finish coatingTiN
Flute by diameter ratio3xD
Flute length0.8661
Flute typeSpiral
Material gradeM2
Maximum drilling depth0.8661
Number of flutes2
Overall length2.1654
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.1654
Shank length1.2992
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialHigh-Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
