Guhring

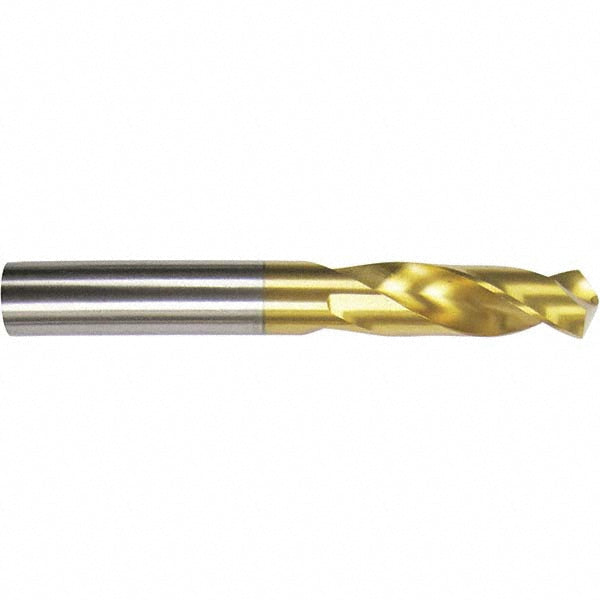

5/16" High-Speed Steel Stub Drill Bit, 118° point - Guhring 9006530079400
MFR# 9006530079400Series 653
$29.04List $37.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
Flutes2
Description
The Guhring 9006530079400 is a 5/16" High-Speed Steel Stub drill bit, 118° point. Suited for cast iron, steel. Series 653.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit gradeGeneral Purpose
Drill bit size in5/16
Drill bit size range0.3000 to 0.3500
Drill length typeStub
Drill point angle118
Drill tip finish coatingTiN
Flute by diameter ratio3xD
Flute length1.4567
Flute typeSpiral
Material gradeM2
Maximum drilling depth1.4567
Number of flutes2
Overall length3.1102
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.3125
Shank length1.6535
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialHigh-Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
