Guhring

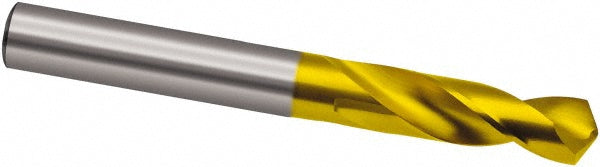

25/64" High-Speed Steel Stub Drill Bit, 118° point - Guhring 9006530099200
MFR# 9006530099200Series 653
$44.58List $57.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size25/64
Flutes2
Description
The Guhring 9006530099200 is a 25/64" High-Speed Steel Stub drill bit, 118° point. Suited for cast iron, steel. Series 653.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit size in25/64
Drill bit size range0.3500 to 0.4000
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)43.00
Flute typeSpiral
Material gradeM2
Maximum drilling depth1.1070
Number of flutes2
Overall length3.5039
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter0.3906
Shank length1.8110in
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 1897
Tool materialHigh-Speed Steel
Web thinningWeb-Thinned
