Guhring

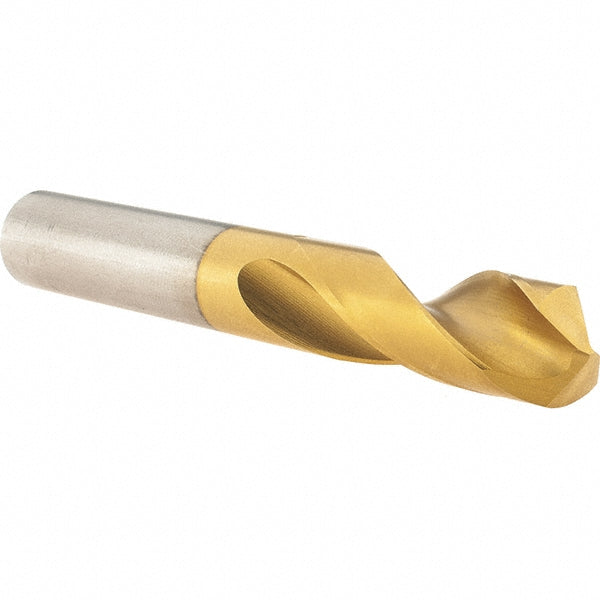

5/8" High Speed Steel Stub Drill Bit, Coated, 118° point - Guhring 9006530158700
MFR# 9006530158700Series 653
$90.03List $115.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/8
Flutes2
CoatingCoated
Description
The Guhring 9006530158700 is a 5/8" High Speed Steel Stub drill bit with a Coated finish, 118° point. Suited for cast iron, steel. Series 653.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit gradeGeneral Purpose
Drill bit size in5/8
Drill bit size range0.6000+
Drill length typeStub
Drill point angle118
Drill tip finish coatingTiN
Flute by diameter ratio3xD
Flute length2.2835
Flute typeSpiral
Material gradeM2
Maximum drilling depth2.2835
Number of flutes2
Overall length4.5276
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)15.88
Shank length2.2441
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialHigh Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
