Guhring

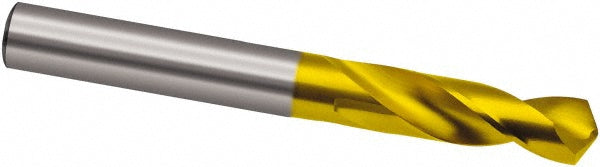

3/4" High Speed Steel Stub Drill Bit, Coated, 118° point - Guhring 9006530190500
MFR# 9006530190500Series 653
$101.07List $129.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/4
Flutes2
CoatingCoated
Description
The Guhring 9006530190500 is a 3/4" High Speed Steel Stub drill bit with a Coated finish, 118° point. Suited for cast iron, steel. Series 653.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit size in3/4
Drill bit size range0.6000+
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)66.00
Flute typeSpiral
Material gradeM2
Maximum drilling depth1.4740
Number of flutes2
Overall length (mm)131.00
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)19.05
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 1897
Tool materialHigh Speed Steel
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
