Guhring

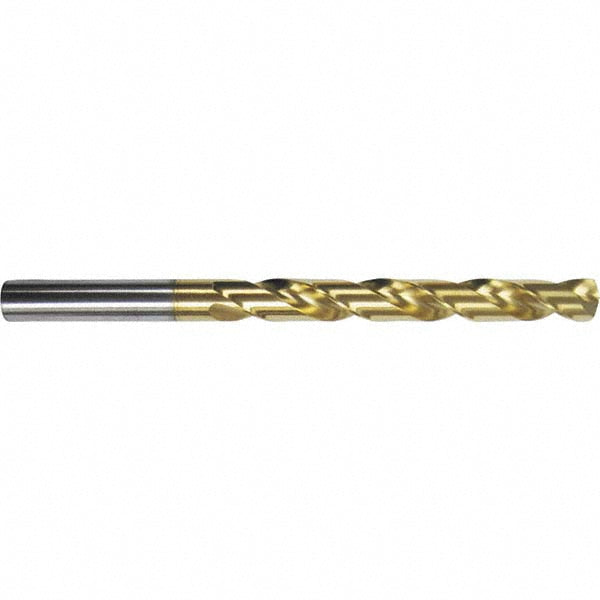

#49 Cobalt Drill Bit, TiN, 130° point - Guhring 9006570018500
MFR# 9006570018500Series 657
$20.86List $26.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006570018500 is a #49 Cobalt drill bit with a TiN finish, 130° point. Suited for stainless steel, high-temp alloy. Series 657.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size0.0730
Drill bit size range0.0500 - 0.1000
Drill bit size wire#49
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length0.8661
Flute typeRegular Spiral
Material gradeM35
Maximum drilling depth2.6250
Number of flutes2
Overall length1.8110
Point typeSplit Point
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter0.3906
Shank length0.9449
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool applicationCentering
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
