Guhring

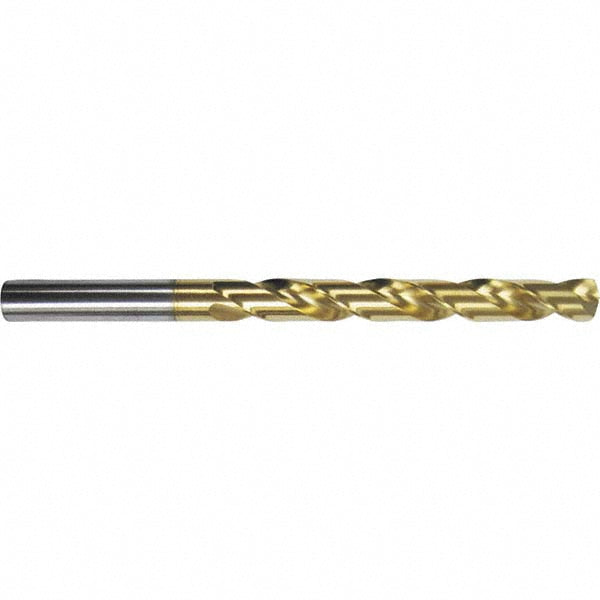

0.0787" Cobalt Drill Bit, TiN, 130° point - Guhring 9006570020000
MFR# 9006570020000
$20.55List $26.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006570020000 is a 0.0787" Cobalt drill bit with a TiN finish, 130° point. Suited for stainless steel, high-temp alloy.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size0.0787
Drill bit size range0.0500 - 0.1000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length0.9449
Flute typeRegular Spiral
Material gradeM35
Maximum drilling depth0.9449
Number of flutes2
Overall length1.9291
Point typeSplit Point
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter0.0787
Shank length0.9843
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
