Guhring

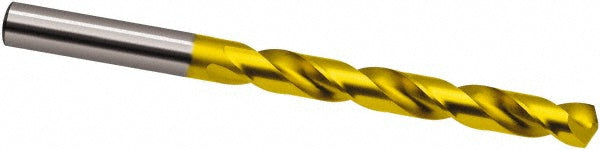

0.2008" Cobalt Drill Bit, TiN, 130° point - Guhring 9006570051000
MFR# 9006570051000Series 657
$27.31List $35.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006570051000 is a 0.2008" Cobalt drill bit with a TiN finish, 130° point. Suited for stainless steel, high-temp alloy. Series 657.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size0.2008
Drill bit size range0.2000 - 0.2500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length2.0472
Flute typeRegular Spiral
Maximum drilling depth1.7460
Number of flutes2
Overall length3.3858
Point typeCone Relief
Primary workpiece materialStainless Steel; High-Temp Alloy
Shank diameter0.2008
Shank length (mm)34
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 338
Tool applicationSelf-Centering
Tool performanceHigh Performance
Web thinningWeb-Thinned
