11/64" Cobalt Drill Bit, TiN, 130° point - Guhring 9006580043700

Guhring

11/64" Cobalt Drill Bit, TiN, 130° point - Guhring 9006580043700

MFR# 9006580043700Series 658

$30.07List $38.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/64
Flutes2
CoatingTiN

Description

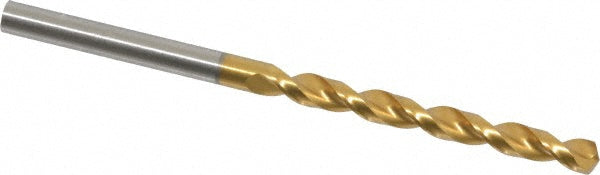

The Guhring 9006580043700 is a 11/64" Cobalt drill bit with a TiN finish, 130° point. Suited for cast iron, steel. 1-27/32 flute length, 3-5/32 overall length. Series 658.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in11/64
Drill bit size range0.1500 - 0.2000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in1-27/32
Flute typeParabolic
Maximum drilling depth1.5930
Number of flutes2
Overall length in3-5/32
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in11/64
Shank length (mm)33.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
