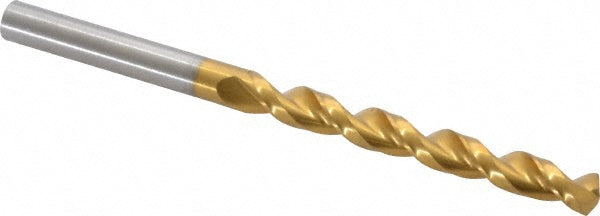

0.2362" Cobalt Drill Bit, TiN, 130° point - Guhring 9006580060000
MFR# 9006580060000Series 658
$42.66List $54.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006580060000 is a 0.2362" Cobalt drill bit with a TiN finish, 130° point. Suited for cast iron, steel. Series 658.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size0.2362
Drill bit size range0.2000 - 0.2500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length (mm)57.00
Flute typeParabolic
Maximum drilling depth1.8900
Number of flutes2
Overall length (mm)93.00
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.2362
Shank length (mm)36.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
