Guhring

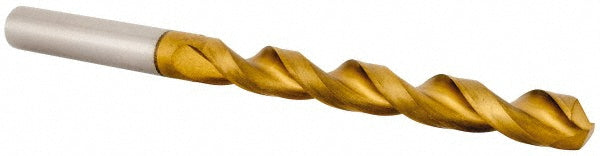

11/32" Cobalt Drill Bit, TiN, 130° point - Guhring 9006580087300
MFR# 9006580087300Series 658
$85.97List $110.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/32
Flutes2
CoatingTiN
Description
The Guhring 9006580087300 is a 11/32" Cobalt drill bit with a TiN finish, 130° point. Suited for cast iron, steel. 3-3/16 flute length, 4-29/32 overall length. Series 658.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.022 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in11/32
Drill bit size range0.3000 - 0.3500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in3-3/16
Flute typeParabolic
Maximum drilling depth2.6740
Number of flutes2
Overall length in4-29/32
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in11/32
Shank length (mm)44.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
