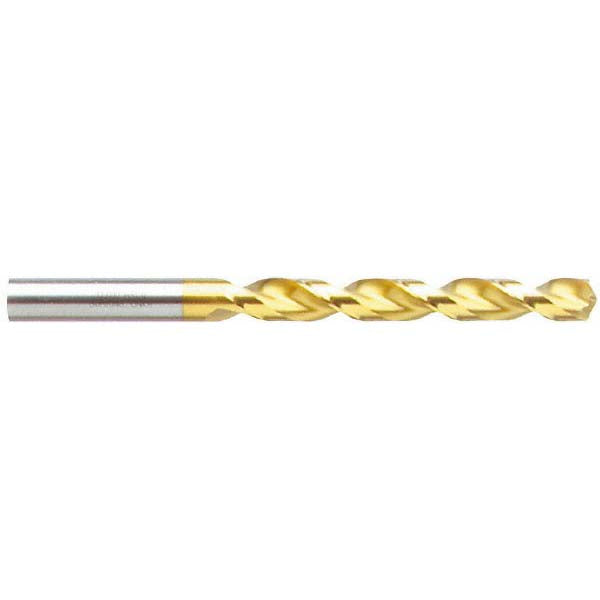

0.3465" Cobalt Drill Bit, TiN, 130° point - Guhring 9006580088000

Guhring

0.3465" Cobalt Drill Bit, TiN, 130° point - Guhring 9006580088000

MFR# 9006580088000Series 658

$85.97List $110.26 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Guhring 9006580088000 is a 0.3465" Cobalt drill bit with a TiN finish, 130° point. Suited for cast iron, steel. 3-3/16 flute length, 4-29/32 overall length. Series 658.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.022 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size0.3465
Drill bit size range0.3000 - 0.3500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in3-3/16
Flute typeParabolic
Maximum drilling depth2.6700
Number of flutes2
Overall length in4-29/32
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.3465
Shank length (mm)44.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
