Guhring
25/64" Cobalt Drill Bit, TiN, 130° point - Guhring 9006580099200
MFR# 9006580099200Series 658
$107.66List $138.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size25/64
Flutes2
CoatingTiN
Description

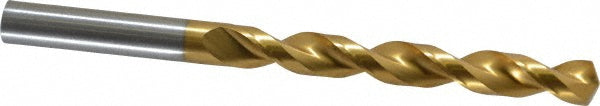

The Guhring 9006580099200 is a 25/64" Cobalt drill bit with a TiN finish, 130° point. Suited for cast iron, steel. 5-1/4 overall length. Series 658.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.022 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in25/64
Drill bit size range0.3500 - 0.4000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length3.4380
Flute typeParabolic
Maximum drilling depth2.8400
Number of flutes2
Overall length in5-1/4
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in25/64
Shank length (mm)46.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
