Guhring

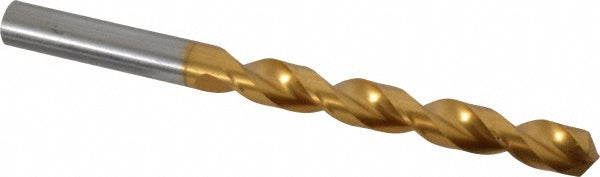

13/32" Cobalt Drill Bit, TiN, 130° point - Guhring 9006580103200
MFR# 9006580103200Series 658
$111.53List $143.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/32
Flutes2
CoatingTiN
Description
The Guhring 9006580103200 is a 13/32" Cobalt drill bit with a TiN finish, 130° point. Suited for cast iron, steel. 5-1/4 overall length. Series 658.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.027 to 0.000 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in13/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length3.4380
Flute typeParabolic
Maximum drilling depth2.8160
Number of flutes2
Overall length in5-1/4
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in13/32
Shank length (mm)46.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
