Guhring

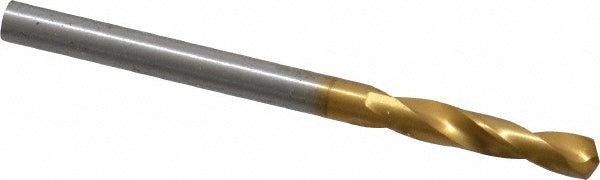

#25 Cobalt Stub Drill Bit, Coated, 130° point - Guhring 9006590038000
MFR# 9006590038000Series 659
$10.50List $13.46
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9006590038000 is a #25 Cobalt Stub drill bit with a Coated finish, 130° point. Suited for titanium alloy. Series 659.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit size0.1495
Drill bit size range0.1000 to 0.1500
Drill bit size wire#25
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length0.8660
Flute typeParabolic
Maximum drilling depth0.6420
Number of flutes2
Overall length2.1650
Point typeStandard
Primary workpiece materialTitanium Alloy
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
