Guhring

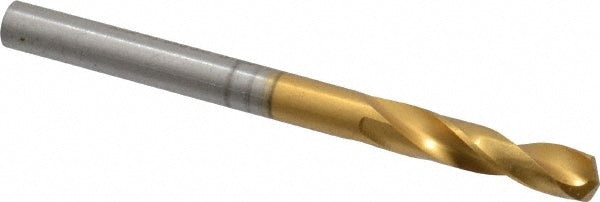

#16 Cobalt Stub Drill Bit, Coated, 130° point - Guhring 9006590045000
MFR# 9006590045000Series 659
$12.81List $16.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9006590045000 is a #16 Cobalt Stub drill bit with a Coated finish, 130° point. Suited for titanium alloy. Series 659.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHeavy Duty
Drill bit size0.1770
Drill bit size range0.1500 to 0.2000
Drill bit size wire#16
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length0.9450
Flute typeParabolic
Maximum drilling depth0.6790
Number of flutes2
Overall length2.2830
Point typeStandard
Primary workpiece materialTitanium Alloy
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
