Guhring

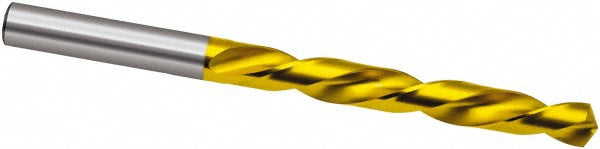

0.1299" High Speed Steel Drill Bit, TiN, 118° point - Guhring 9006640033000
MFR# 9006640033000Series 664
$9.97List $12.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006640033000 is a 0.1299" High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. Series 664.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionLeft Hand
Drill bit diameter toleranceh8
Drill bit finish coatingTitanium Nitride
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.1299
Drill bit size range0.1000 - 0.1500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)36.00
Flute typeSpiral
Maximum drilling depth1.2220
Number of flutes2
Overall length (mm)65.00
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter0.1299
Shank length (mm)29.00
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
