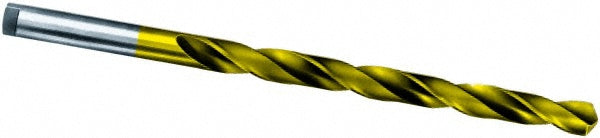

#51 High Speed Steel Drill Bit, TiN, 118° point - Guhring 9006660017000
MFR# 9006660017000Series 666
$11.79List $15.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Guhring 9006660017000 is a #51 High Speed Steel drill bit with a TiN finish, 118° point. Suited for aluminum. Series 666.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeGeneral Purpose
Drill bit size0.0670
Drill bit size wire#51
Drill point angle118
Flute by diameter ratio10xD
Flute length (mm)35.00
Flute typeSpiral
Maximum drilling depth1.2780
Number of flutes2
Overall length (mm)58.00
Point typeN
Primary workpiece materialAluminum
Shank diameter (mm)1.70
Shank length (mm)23.00
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 339
Tool applicationBushing
Tool materialHigh Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
