Guhring

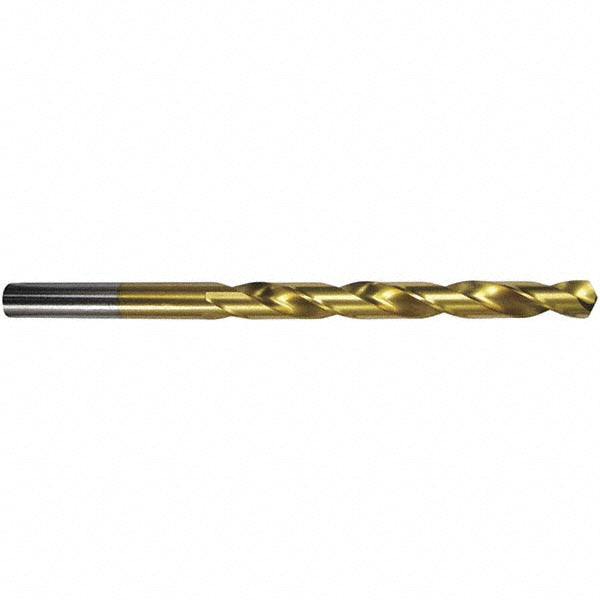

9/16" HSS Drill Bit, TiN, 118° point - Guhring 9006670142900
MFR# 9006670142900Series 667
$84.33List $108.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/16
CoatingTiN
Description
The Guhring 9006670142900 is a 9/16" HSS drill bit with a TiN finish, 118° point. Series 667.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit size in9/16
Drill point angle degrees118
Flute length5.6693
Flute length x diameter ratio10xD
Flute typeSpiral
Material gradeM2
Maximum drilling depth5.6693
Overall length8-2/4
Point typeStandard
Shank diameter in9/16
Shank length2.9921
Shank typeStraight-Cylindrical
Specification numberDIN 340
Spiral typeRegular
StandardsDIN 340
Threaded shankNo
Tool materialHSS
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
