Guhring

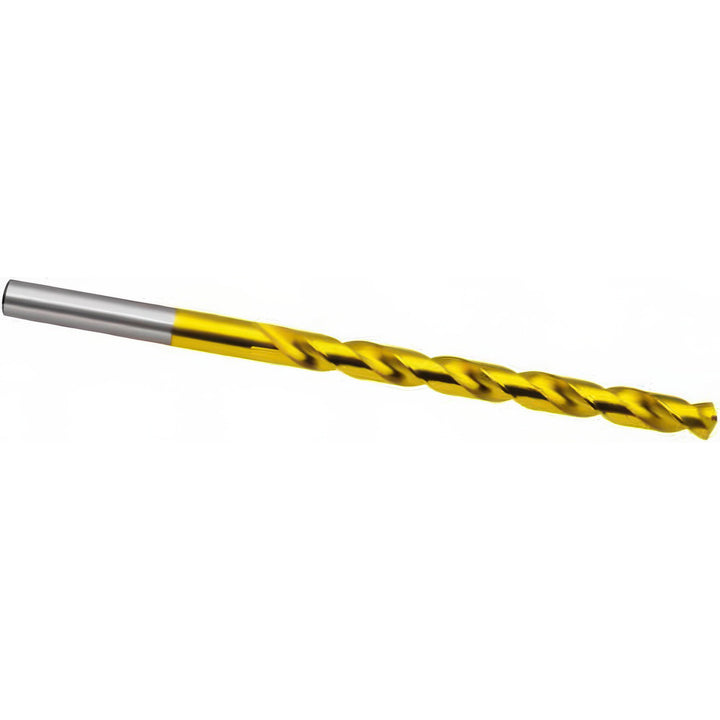

1/16" Cobalt Drill Bit, Coated, 130° point - Guhring 9006690015900
MFR# 9006690015900Series 669
$44.30List $56.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
CoatingCoated
Description
The Guhring 9006690015900 is a 1/16" Cobalt drill bit with a Coated finish, 130° point. Series 669.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size in1/16
Drill point angle degrees130
Flute length (mm)50.00
Flute length x diameter ratio10xD
Flute typeSpiral
Material gradeM-35
Maximum drilling depth1.8750
Overall length (mm)76.00
Point typeCone Relief
Shank diameter (mm)1.59
Shank length (mm)26.00
Shank typeCylindrical
Spiral typeRegular
StandardsDIN 340
Threaded shankNo
Tool applicationSelf-Centering
Tool materialCobalt
Tool performanceHigh
Web thinningWeb-Thinned
