Guhring

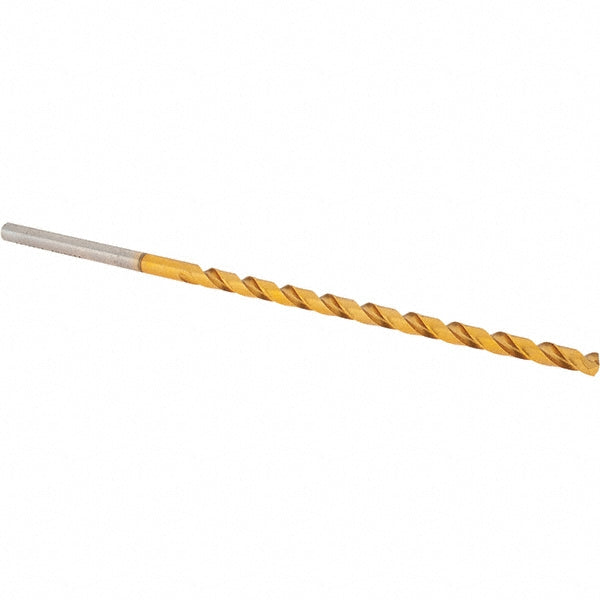

1/8" Cobalt Drill Bit, Coated, 130° point - Guhring 9006690031700
MFR# 9006690031700Series 669
$39.80List $51.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
CoatingCoated
Description
The Guhring 9006690031700 is a 1/8" Cobalt drill bit with a Coated finish, 130° point. Series 669.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit size in1/8
Drill point angle degrees130
Flute length2.7165
Flute length x diameter ratio10xD
Flute typeSpiral
Material gradeM-35
Maximum drilling depth2.7165
Overall length (mm)106.00
Point typeSplit
Shank diameter in1/8
Shank length1.4567
Shank typeCylindrical
Specification numberDIN 340
Spiral typeRegular
StandardsDIN 340
Threaded shankNo
Tool applicationSelf-Centering
Tool materialCobalt
Tool performanceHigh
Web configurationTapered
Web thinningWeb-Thinned
