Guhring

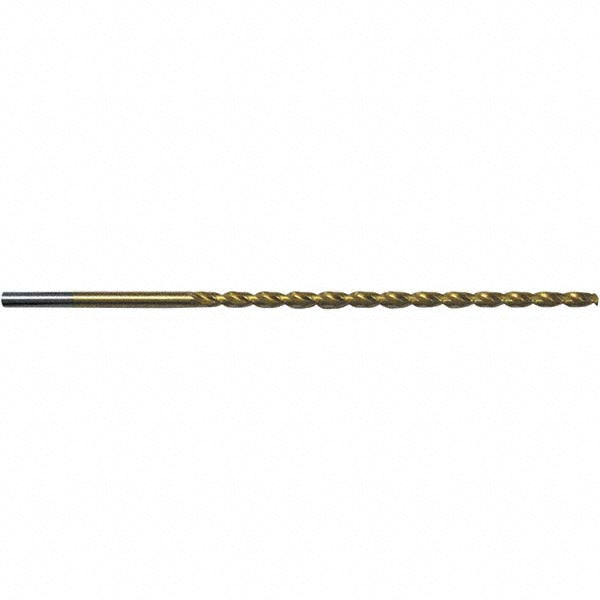

1/8" High-Speed Steel Drill Bit, TiN - Guhring 9006700031700
MFR# 9006700031700Series 670
$70.12List $89.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
CoatingTiN
Description
The Guhring 9006700031700 is a 1/8" High-Speed Steel drill bit with a TiN finish. Series 670.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size in1/8
Flute by diameter ratio10xD
Flute length4.1339
Flute typeParabolic
Material gradeM2
Maximum drilling depth4.1339
Number of flutes2
Overall length (mm)155.00
Point typeChisel Point
Shank diameter in1/8
Shank length1.9685
Shank typeStraight-Cylindrical
Specification designationDIN
Tool materialHigh-Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
