Guhring

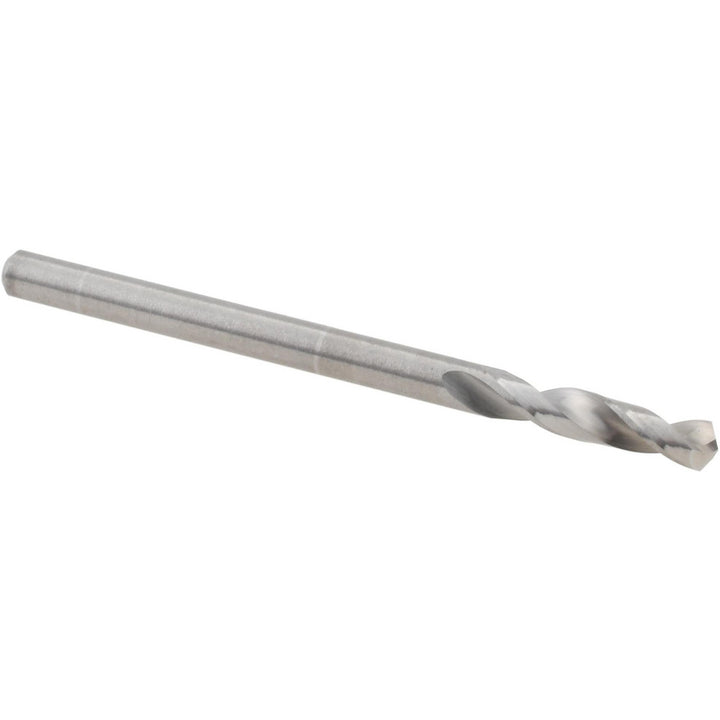

1/8" Solid Carbide Stub Drill Bit, 118° point - Guhring 9007300031700
MFR# 9007300031700Series 730
$18.89List $24.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
Description
The Guhring 9007300031700 is a 1/8" Solid Carbide Stub drill bit, 118° point. Suited for aluminum & non-ferrous. Series 730.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.012 mm
Drill bit size in1/8
Drill bit size range0.1000 to 0.1500
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)18.00
Flute typeRegular Spiral
Material gradeSubmicron
Maximum drilling depth0.5220
Number of flutes2
Overall length1.9291
Point type4 Facet
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter0.1250
Shank length1.2205
Shank typeStraight
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
