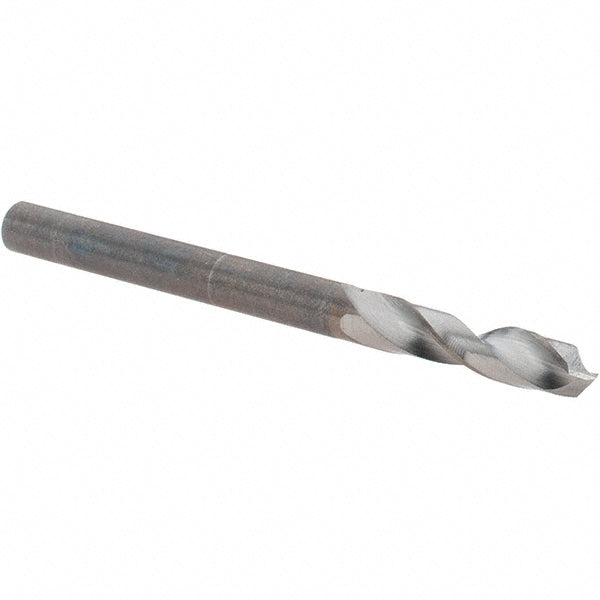

#16 Solid Carbide Stub Drill Bit, 118° point - Guhring 9007300045000
MFR# 9007300045000Series 730
$28.88List $37.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9007300045000 is a #16 Solid Carbide Stub drill bit, 118° point. Suited for aluminum. Series 730.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.012 mm
Drill bit gradeGeneral Purpose
Drill bit size0.1770
Drill bit size range0.1500 to 0.2000
Drill bit size wire#16
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length0.9449
Flute typeSpiral
Material gradeDK120
Maximum drilling depth0.9449
Number of flutes2
Overall length2.2835
Point typeFaceted
Primary workpiece materialAluminum
Shank diameter (mm)4.50
Shank length1.3386
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN 6539
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
