Guhring

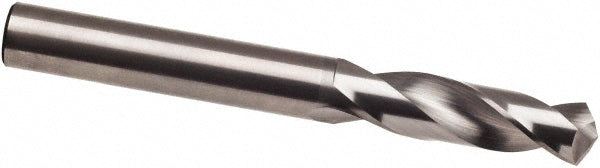

0.1811" Solid Carbide Drill Bit, 118° point - Guhring 9007300046000
MFR# 9007300046000Series 730
$22.18List $28.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9007300046000 is a 0.1811" Solid Carbide drill bit, 118° point. Series 730.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeGeneral Purpose
Drill bit size0.1811
Drill bit size range0.1500 to 0.2000
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)24.00
Flute typeSpiral
Material gradeMicrograin
Number of flutes2
Overall length (mm)58.00
Point typeFaceted
Shank diameter (mm)4.60
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
Tool materialSolid Carbide
Web thinningWeb-Thinned
