Guhring

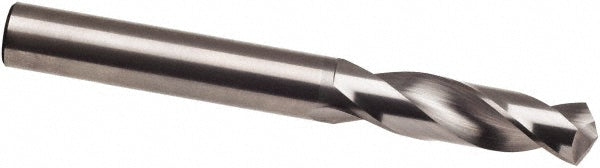

3/16" Solid Carbide Stub Drill Bit, 118° point - Guhring 9007300047600
MFR# 9007300047600Series 730
$32.94List $42.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/16
Flutes2
Description
The Guhring 9007300047600 is a 3/16" Solid Carbide Stub drill bit, 118° point. Suited for aluminum & non-ferrous. Series 730.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeGeneral Purpose
Drill bit size in3/16
Drill bit size range0.1500 to 0.2000
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)26.00
Flute typeRegular Spiral
Material gradeMicrograin
Maximum drilling depth0.7430
Number of flutes2
Overall length2.4409
Point type4 Facet
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter0.1874
Shank length1.4173
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 6539
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
