Guhring

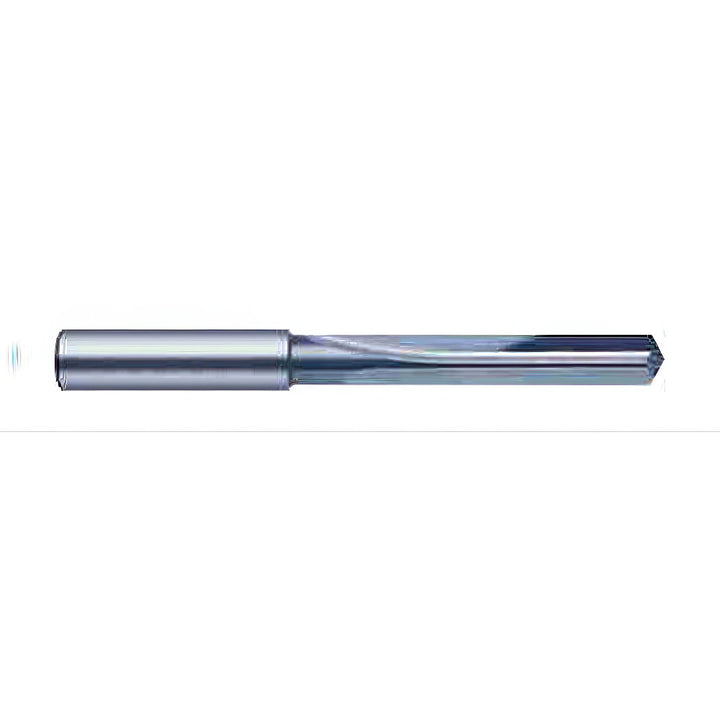

1/4" Carbide Drill Bit, 120° point - Guhring 9007680063500
MFR# 9007680063500Series 768
$230.52List $295.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Flutes2
Description
The Guhring 9007680063500 is a 1/4" Carbide drill bit, 120° point. Suited for aluminum. Series 768.
Specifications
Coolant hole shapeRound
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit size in1/4
Drill bit size letterE
Drill bit typeStraight-Flute
Drill point angle120
Flute by diameter ratio4xD
Flute length (mm)53.00
Material gradeSubmicron
Maximum drilling depth1.7120
Number of flutes2
Overall length (mm)91.00
Point typeStandard
Primary workpiece materialAluminum
Secondary workpiece materialAluminum; Aluminum Alloy; Cast Iron
Shank diameter (mm)8.00
Shank length (mm)36.00
Specification numberDIN 6535HA
Tool materialCarbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
